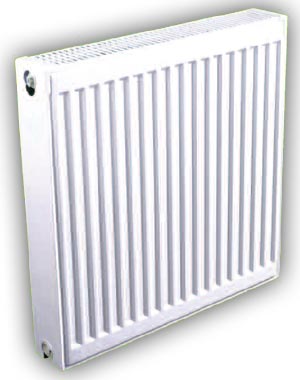

Eco Rad Radiators
CLICK HERE FOR SPEC SHEET
10 YEAR GUARANTEE
Click here for technical info

Heat outputs certified to EN 442

All Eco Rads are supplied with factory fitted top grille and side panels

Eco Rads are manufactured under EN ISO 9001

Eco Rads are painted with RAL 9016

10 YEAR GUARANTEE

Water Treatment
It is strongly recommended on completion of the installation the system should be properly flushed and filled in accordance with the British Standard Code of Practice for the Treatment of Water in Domestic Hot Water Central Heating
Systems BS 7593.
For maximum efficiency, radiators should be fixed at not less than 100mm (4”) from finished floor level. Pipe positioning guide for manual valve allow 35mm to centre
pipe. For TRV valve allow 45mm to centre pipe. To prevent damage to radiator it is strongly recommended during installation to leave protective packaging on radiator by simply removing the lug protectors and pre-cut tapping connnection.
SIZE SINGLES P+ DOUBLES
Height Width Code Watts BTUs List Code Watts BTUs List Code Watts BTUs List
300 500 TS305 280 955 £81.55 TD305 534 1822 £132.60
300 1000 TS310 560 1911 £129.90 TD310 1068 3644 £228.31
300 1200 TS312 672 2293 £163.11 TD312 1282 4374 £283.94
300 1400 TS314 784 2675 £182.03 TD314 1496 5105 £319.65
300 2000 TS320 1120 3822 £255.16 TD320 2137 7292 £457.68
Height Width Code Watts BTUs List Code Watts BTUs List Code Watts BTUs List
400 400 TS404 294 1003 £77.04 TD404 547 1866 £117.20
400 600 TS406 442 1508 £87.37 TP406 637 2174 £121.32 TD406 821 2801 £160.78
400 800 TS408 589 2010 £99.64 TP408 850 2900 £161.77 TD408 1095 3736 £186.05
400 1000 TS410 736 2511 £123.48 TP410 1062 3624 £202.18 TD410 1368 4668 £232.43
400 1200 TS412 883 3013 £148.16 TP412 1274 4347 £242.65 TD412 1642 5603 £278.92
400 1400 TS414 1030 3515 £172.84 TP414 1487 5074 £283.09 TD414 1916 6538 £325.41
400 1600 TS416 1177 4016 £197.55 TD416 2190 7473 £371.86
400 1800 TS418 1325 4521 £222.24 TD418 2463 8404 £418.36
400 2000 TS420 1472 5023 £246.93 TD420 2737 9339 £464.84
400 2200 TS422 1619 5524 £309.75 TD422 3011 10274 £726.59
400 2400 TS424 1766 6026 £337.95 TD424 3284 11205 £792.65
400 2600 TS426 1913 6527 £365.44
400 2800 TS428 2060 7029 £394.28
400 3000 TS430 2208 7534 £422.45
Height Width Code Watts BTUs List Code Watts BTUs List Code Watts BTUs List
500 400 TS504 360 1228 £82.82 TP504 511 1744 £134.42 TD504 658 2245 £149.10
500 500 TS505 450 1535 £94.14 TD505 822 2805 £165.55
500 600 TS506 540 1843 £105.49 TP506 766 2614 £157.83 TD506 987 3368 £182.03
500 700 TS507 630 2150 £110.92 TP507 894 3050 £183.89 TD507 1151 3927 £212.20
500 800 TS508 720 2457 £126.11 TP508 1022 3487 £209.65 TD508 1316 4490 £241.99
500 900 TS509 810 2764 £142.87 TP509 1149 3921 £235.44 TD509 1480 5050 £272.15
500 1000 TS510 900 3071 £156.60 TP510 1277 4357 £261.43 TD510 1645 5613 £302.31
500 1100 TS511 990 3378 £173.27 TP511 1405 4794 £287.30 TD511 1809 6173 £332.30
500 1200 TS512 1080 3685 £187.92 TP512 1533 5231 £313.81 TD512 1973 6732 £362.72
500 1300 TS513 1170 3992 £209.48 TP513 1660 5664 £358.85 TD513 2138 7295 £407.47
500 1400 TS514 1260 4299 £219.25 TP514 1788 6101 £366.34 TD514 2302 7855 £423.18
500 1600 TS516 1440 4913 £250.57 TP516 2043 6971 £418.42 TD516 2631 8977 £483.63
500 1800 TS518 1620 5528 £281.89 TD518 2960 10100 £544.09
500 2000 TS520 1800 6142 £313.22 TD520 3289 11223 £604.55
500 2400 TS524 2160 7370 £375.86 TD524 3947 13468 £1,030.87
500 2600 TS526 2340 7984 £407.17
500 2800 TS528 2520 8599 £438.49
500 3000 TS530 2700 9213 £469.81
Height Width Code Watts BTUs List Code Watts BTUs List Code Watts BTUs List
600 400 TS604 421 1437 £90.01 TP604 592 2020 £131.40 TD604 760 2593 £156.64
600 500 TS605 526 1795 £103.61 TP605 740 2525 £152.54 TD605 949 3238 £179.29
600 600 TS606 631 2153 £109.66 TP606 888 3030 £160.61 TD606 1139 3886 £194.43
600 700 TS607 737 2515 £119.87 TP607 1036 3535 £187.31 TD607 1329 4535 £226.86
600 800 TS608 842 2873 £136.28 TP608 1184 4040 £213.61 TD608 1519 5183 £258.96
600 900 TS609 947 3231 £152.73 TP609 1332 4545 £239.88 TD609 1709 5831 £291.04
600 1000 TS610 1052 3590 £168.99 TP610 1480 5050 £266.72 TD610 1899 6480 £323.31
600 1100 TS611 1157 3948 £185.01 TP611 1628 5555 £292.92 TD611 2089 7128 £355.48
600 1200 TS612 1263 4310 £202.75 TP612 1777 6063 £319.88 TD612 2279 7776 £387.97
600 1300 TS613 1368 4668 £228.00 TP613 1925 6568 £359.44 TD613 2469 8425 £445.41
600 1400 TS614 1473 5026 £236.56 TP614 2073 7073 £373.21 TD614 2658 9069 £452.65
600 1500 TS615 1578 5384 £262.62 TP615 2221 7578 £411.72 TD615 2848 9718 £506.23
600 1600 TS616 1683 5743 £270.35 TP616 2369 8083 £426.22 TD616 3038 10366 £522.31
600 1800 TS618 1894 6463 £304.15 TP618 2665 9093 £480.09 TD618 3418 11663 £587.59
600 2000 TS620 2104 7179 £341.20 TP620 2961 10103 £533.42 TD620 3798 12959 £652.90
600 2200 TS622 2315 7899 £401.32
600 2400 TS624 2525 8616 £437.80 TD624 4557 15549 £1,124.24
600 2600 TS626 2736 9336 £474.28
600 2800 TS628 2946 10052 £510.78
600 3000 TS630 3157 10772 £547.25
Height Width Code Watts BTUs List Code Watts BTUs List Code Watts BTUs List
700 400 TS704 477 1628 £108.75 TP704 669 2283 £172.90 TD704 853 2911 £194.34
700 500 TS705 596 2034 £120.82 TD705 1067 3641 £221.56
700 600 TS706 715 2440 £128.52 TP706 1004 3426 £204.35 TD706 1280 4368 £235.74
700 700 TS707 834 2846 £149.14 TD707 1494 5098 £274.73
700 800 TS708 953 3252 £169.62 TP708 1338 4565 £269.70 TD708 1707 5825 £313.61
700 900 TS709 1072 3658 £190.04 TD709 1920 6551 £352.67
700 1000 TS710 1191 4064 £210.24 TP710 1673 5709 £334.29 TD710 2134 7282 £391.69
700 1100 TS711 1310 4470 £248.61 TD711 2347 8008 £463.17
700 1200 TS712 1430 4879 £271.21 TP712 2007 6848 £431.23 TD712 2560 8735 £505.27
700 1400 TS714 1668 5691 £316.41 TD714 2987 10192 £589.48
Outputs at Delta T50°C
