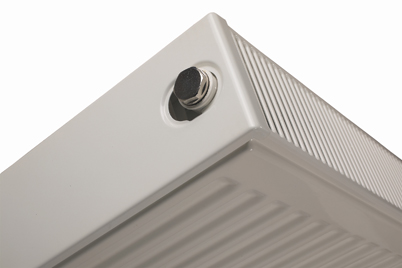

Prima Rad Radiators

10 YEAR GUARANTEE

For maximum efficiency, radiators should be fixed at not less than
100mm (4”) from finished floor level.
Pipe positioning guide for manual valve allow 35mm to centre
pipe. For TRV valve allow 45mm to centre pipe.
To prevent damage to radiator it is strongly recommended during
installation to leave protective packaging on radiator by simply
removing the lug protectors and pre cut tapping connection.

Water Treatment
It is strongly recommended on completion of the installation the system should be properly flushed and filled in accordance with the British Standard Code of Practice for the Treatment of Water in
Domestic Hot Water Central Heating Systems BS 7593.

		SINGLES				P+				DOUBLES
Height	Width	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST
300mm	600									PD306	508	1732	107.94
	1000									PD310	1015	3465	185.84
	1200									PD312	1217	4158	235.61
	1400									PD314	1420	4850	265.24
	2000									PD320	2029	6930	379.78
Height	Width	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST
400mm	400	PS404	281	933	£62.70
	600	PS406	422	1399	£71.12	PP406	584	1994	£100.67	PD406	780	2664	130.87
	800	PS408	562	1865	£81.10	PP408	777	2653	£134.23	PD408	1040	3551	151.44
	1000	PS410	703	2332	£100.50	PP410	970	3313	£167.77	PD410	1300	4439	189.19
	1200	PS412	844	2799	£122.94	PP412	1164	3974	£201.35	PD412	1559	5327	231.44
	1400	PS414	985	3265	£143.42	PP414	1358	4639	£234.91	PD414	1820	6215	270.02
	1600	PS416	1126	3732	£163.93					PD416	2080	7103	308.57
	1800	PS418	1266	4197	£184.41					PD418	2340	7991	347.15
	2000	PS420	1407	4664	£204.90					PD420	2600	8878	385.72
Height	Width	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST
500mm	400	PS504	342	1134	£67.42
	500	PS505	428	1417	£76.64					PD505	784	2679	134.76
	600	PS506	513	1701	£85.88	PP506	753	2571	£128.47	PD506	941	3215	148.16
	700	PS507	598	1985	£90.29					PD507	1098	3750	172.73
	800	PS508	684	2268	£102.85	PP508	1003	3428	£170.65	PD508	1255	4286	196.98
	900	PS509	769	2551	£116.30	PP509	1129	3856	£191.64	PD509	1412	4821	221.52
	1000	PS510	855	2835	£127.47	PP510	1255	4284	£212.80	PD510	1569	5357	246.07
	1100	PS511	941	3119	£143.77	PP511	1380	4712	£238.40	PD511	1725	5893	275.74
	1200	PS512	1026	3402	£155.94	PP512	1506	5141	£260.40	PD512	1883	6428	300.98
	1300	PS513	1112	3685	£173.83					PD513	2039	6964	338.11
	1400	PS514	1197	3969	£181.93	PP514	1756	5998	£303.99	PD514	2196	7499	351.16
	1600	PS516	1369	4536	£207.92	PP516	2007	6855	£347.21	PD516	2510	8572	401.31
	1800	PS518	1539	5103	£233.91					PD518	2823	9643	451.48
	2000	PS520	1710	5670	£259.90					PD520	3137	10714	501.65
Height	Width	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST
600mm	400	PS604	401	1329	£73.27	PP604	580	1980	£106.96	PD604	729	2488	127.51
	500	PS605	501	1660	£84.34	PP605	725	2474	£124.17	PD605	912	3112	145.94
	600	PS606	600	1992	£89.25	PP606	869	2969	£130.74	PD606	1093	3734	158.26
	700	PS607	701	2325	£97.57	PP607	1015	3464	£152.47	PD607	1275	4356	184.66
	800	PS608	801	2656	£110.93	PP608	1160	3959	£173.87	PD608	1457	4978	210.79
	900	PS609	902	2988	£124.32	PP609	1304	4454	£195.26	PD609	1640	5600	236.90
	1000	PS610	1001	3321	£137.55	PP610	1449	4949	£217.11	PD610	1822	6222	263.16
	1100	PS611	1101	3652	£153.52	PP611	1594	5444	£243.07	PD611	2004	6844	294.97
	1200	PS612	1202	3985	£168.24	PP612	1739	5939	£265.43	PD612	2187	7466	321.92
	1300	PS613	1302	4317	£189.19	PP613	1884	6433	£298.27	PD613	2369	8089	369.60
	1400	PS614	1403	4648	£196.29	PP614	2029	6929	£309.69	PD614	2551	8712	375.60
	1500	PS615	1502	4981	£217.91	PP615	2174	7423	£341.63	PD615	2734	9334	420.07
	1600	PS616	1602	5313	£224.33	PP616	2319	7919	£353.67	PD616	2915	9956	433.41
	1800	PS618	1802	5977	£252.37	PP618	2609	8908	£398.37	PD618	3280	11200	487.58
	2000	PS620	2003	6641	£283.13	PP620	2898	9898	£442.62	PD620	3644	12444	541.77
Height	Width	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST	Code	Watts	BTUs	LIST
700mm	400	PS704	484	1604	£88.51	PP704	699	2388	£143.47	PD704	871	2975	£158.19
	500	PS705	605	2005	£98.35					PD705	1089	3718	£180.34
	600	PS706	726	2406	£104.61	PP706	1049	3584	£169.56	PD706	1306	4462	£191.89
	700	PS707	847	2807	£121.40					PD707	1524	5206	£223.62
	800	PS708	968	3207	£138.07	PP708	1399	4780	£223.80	PD708	1742	5948	£255.28
	900	PS709	1057	3609	£157.69					PD709	1960	6691	£292.65
	1000	PS710	1174	4009	£174.46	PP710	1749	5976	£277.39	PD710	2177	7435	£325.02
	1100	PS711	1292	4411	£206.29					PD711	2394	8178	£384.33
	1200	PS712	1409	4813	£225.05					PD712	2612	8920	£419.27
	1400	PS714	1644	5616	£262.55					PD714	3046	10406	£489.14

Outputs at Delta T50°C
